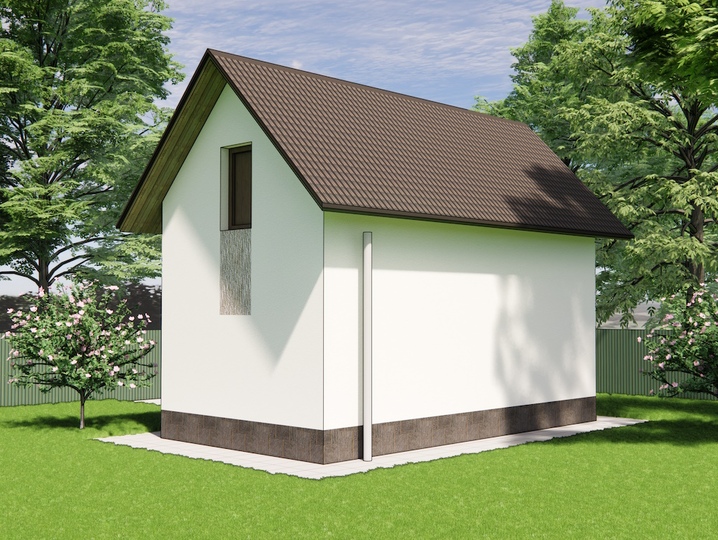

Project of a barn with a basement Saraychik 6 (17.7 м²)
Project of a barn or workshop with a basement:
- Total area:17.7 м²
- Basement Area:17.1 м²
- House dimensions:6.6 м х 3.6 м
CONSTRUCTION:
- Foundations:Tape prefabricated reinforced concrete
- Exterior Walls:Aerated concrete block 300 mm
- Overlaps:Monolith reinforced concrete, Wooden joist
- Roof:Pitched
- Roofing:Metal tiles
Project price:
348 €
| Parameter | data |
|---|---|
| Foundations | Tape prefabricated reinforced concrete |
| Walls | Aerated concrete block 300 mm |
| Roofing | Metal tiles |
| Number of floors | 1 |
| First floor floor | On the ground |
| Ground floor height | 2.4 м |
| Overlap of the first floor | Monolith reinforced concrete |
| Overlap of the second floor | Wooden joist |
The roof of the barn is ideal for installing solar panels.
On a sunny June day, such a station can produce about 20-25 kWh of electricity per day. This fully covers the needs of an average private house (lighting, refrigerators, pumps, televisions) and allows you to charge a powerful portable station or batteries.
On cloudy winter days, the output drops significantly (to 1-3 kWh), but this is still enough to support the operation of critical electronics and lighting in economy mode.
The roof has a slope of 45°, which is close to ideal for operating the station in the autumn-winter period (when the sun is low above the horizon). This will allow you to get maximum energy exactly when it is needed most.
