Project for a narrow plot - Horobyna 6 (89 м²)

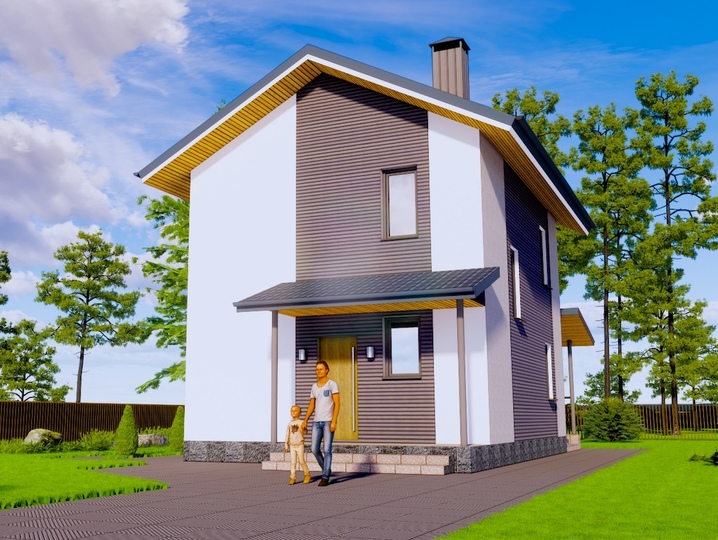

house project 89 m2 Horobyna 6 Main facade

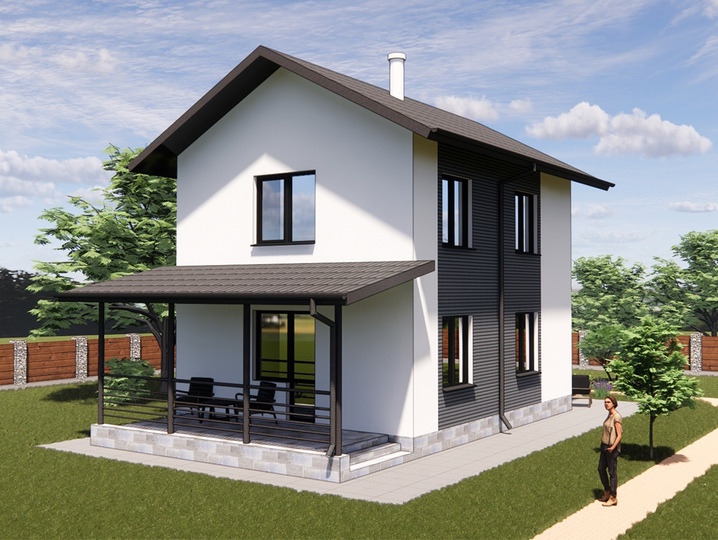

house project 89 m2 Horobyna 6 Rear facade

House project for a narrow plot. Three bedrooms:

Total area:89 м²
House dimensions:6.8 м х 8.7 м

CONSTRUCTION:

Foundations:Tape monolith reinforced concrete
Exterior Walls:Aerated concrete block 375 mm
Overlaps:Wooden joist
Roof:Pitched
Roofing:Metal tiles

Project for a narrow plot of 89m2 Horobyna 6

Project price:

609 €

composition of the project

№	Name	Sq.m
1	Hallway	3.2
2	Pantry	2.3
3	Half-bathroom	3.8
4	Bedroom	8.3
5	Corridor	3.2
6	Pantry	3.4
7	Dining-room	19.3
8	Staircase	4.8
Total floor area		48,3

№	Name	Sq.m
1	Corridor	3.1
2	Bedroom	19.1
3	Bedroom	12.2
4	Half-bathroom	6.6
Total floor area		41

Input data and construction description
Parameter	data
Foundations	Tape monolith reinforced concrete
Walls	Aerated concrete block 375 mm
Roofing	Metal tiles
Number of floors	2
Second floor configuration	full
First floor floor	On the ground
Ground floor height	2.1 м
Height of the second floor	2.1 м
Overlap of the first floor	Wooden joist

The plan of the first floor of the two-story house includes a bedroom, a bathroom, a hallway and a spacious kitchen-living room with access to the terrace. Heating is provided by a heat pump or an electric boiler located under the stairs, and backup heating - a stove/fireplace in the living room. If necessary, a double-circuit gas boiler can be installed in the kitchen. The layout of this house combines the convenience of a bedroom on the first floor with a modern open kitchen-living room and the possibility of relaxing on the terrace.

The second floor contains a corridor, two bedrooms and a bathroom. The large bedroom is for the owners of the house. The smaller one is for the children. The bathroom has a bathtub, toilet and washbasin.

The foundation is strip.

The load-bearing external walls made of aerated concrete blocks are a support for two transverse steel beams that support the beams of the wooden floor. In addition to the walls, each of the transverse beams rests on two steel columns. A hatch is provided in the corridor of the second floor to enter the attic.
