''Oksana'' (216 м²)

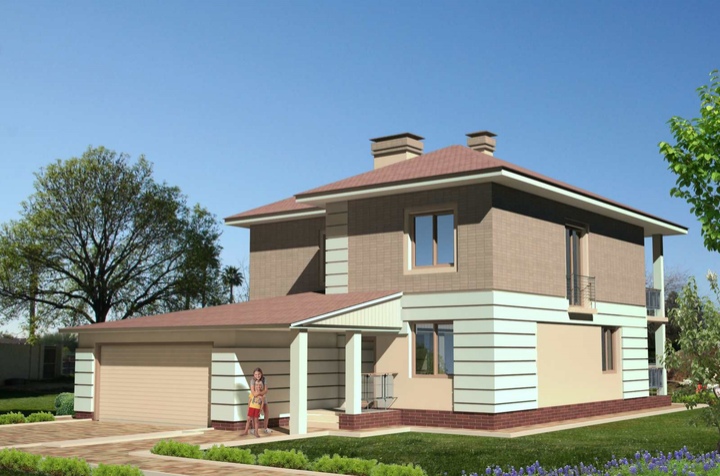

Main facade

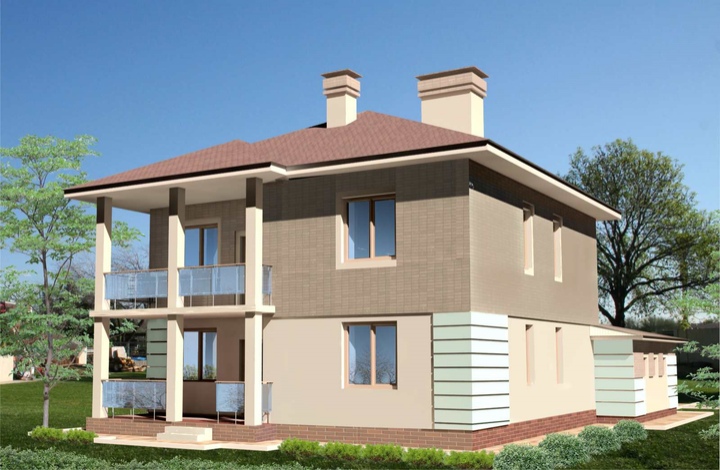

Rear facade

Cottage with a built-in garage for 2 cars and a balcony:

Total area:216 м²
Total area without garage and basement:181.5 м²
Garage area:34.8 м²
House dimensions:17.9 м х 12.0 м

CONSTRUCTION:

Foundations:Tape monolith reinforced concrete
Exterior Walls:Clay block 380 mm
Overlaps:Reinforced concrete panels, Wooden joist
Roof:Pitched
Roofing:Bitumen tile

Project price:

648 €

composition of the project

Ground floor plan House plan ''Oksana'' 216 sq.m

№	Name	Sq.m
1	Рortal	3.5
2	Hallway	18.1
3	Half-bathroom	7.2
4	Kitchen	12.8
5	Bedroom	14.7
6	Living room	27.0
7	Boiler room	5.2
8	Garage	34.8
Total floor area		123,3

Second floor plan House plan ''Oksana'' 216 sq.m

№	Name	Sq.m
1	Staircase	5.9
2	Corridor	9.9
3	Half-bathroom	8.6
4	Half-bathroom	3.2
5	Pantry	2.8
6	Bedroom	14.6
7	Study room	16.2
8	Bedroom	15.7
9	Bedroom	16.3
Total floor area		93,2

Cut House plan ''Oksana'' 216 sq.m

Roof plan House plan ''Oksana'' 216 sq.m

Input data and construction description
Parameter	data
Soil carrying capacity	1,5 кг/см2
Foundations	Tape monolith reinforced concrete
Walls	Clay block 380 mm
Roofing	Bitumen tile
Number of floors	2
Second floor configuration	full
First floor floor	On the ground
Ground floor height	2.7 м
Height of the second floor	2.7 м
Overlap of the first floor	Reinforced concrete panels
Overlap of the second floor	Wooden joist
