''Ivan'' (249м²)

Рейтинг: 2.63/5 (24 Votes)
icon zoom

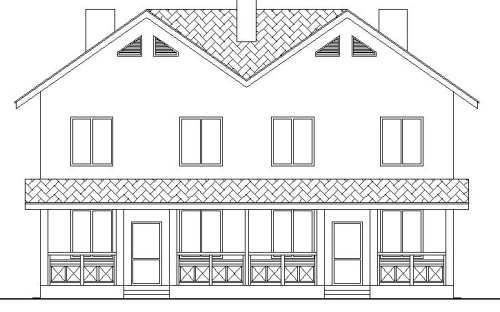

Main facade Rear facade
Project duplex house for two families with a total area 249 m2:
  • Total area:249 м²
  • House dimensions:13.620 м х 16.650 м
CONSTRUCTION:
  • Foundations:Tape monolith reinforced concrete
  • Exterior Walls:Aerated concrete block 375 mm
  • Overlaps:Reinforced concrete panels, Reinforced concrete panels
  • Roof:Pitched
  • Roofing:Bitumen tile
Project price:
648
Buy Project
NameSq.m
1Рortal 2.5
2Boiler room 2.91
3Study room 11.49
4Hallway 6.28
5Half-bathroom 3.7
6Corridor 4.42
7Dining-room 26.52
8Pantry 1.53
Total floor area59,35
NameSq.m
1Corridor 3.82
2Half-bathroom 3.7
3Bedroom 11.94
4Bedroom 14.15
5Bedroom 24.85
6Staircase 4.85
Total floor area63,31
Input data and construction description
Parameter data
Soil carrying capacity 1.5 кг/см2
Foundations Tape monolith reinforced concrete
Walls Aerated concrete block 375 mm
Roofing Bitumen tile
Number of floors 2
Second floor configuration full
First floor floor On the ground
Ground floor height 2.75 м
Height of the second floor 2.75 м
Overlap of the first floor Reinforced concrete panels
Overlap of the second floor Reinforced concrete panels
