Project of a one-story house with a garage for two cars

The project of a one-story house includes a garage (room 15) with an area of ​​36 m2, which can accommodate two cars. You can enter the garage both from the yard and from the house. There are doors from the hallway to the garage. The planning decision of the single-storey house project is marked by clear zoning. On the left is an intimate area, consisting of three bedrooms and two bathrooms. To the bedroom 11 there is attached a bathroom 12 with a toilet, a bath and a washbasin, and a dressing room 9. There is an exit to the terrace from the bedroom.

Near the kitchen there is a small bathroom 13 in which there is an opportunity to place a toilet and a washstand. The entrance to the house is provided through the entrance 1 in which there is a place for a cabinet for outerwear. Near the hallway there is a utility room 2 where it is planned to place a gas heating boiler, a solid fuel boiler, or a heat pump. The use of a heat pump, the use of effective thermal insulation can reduce heating costs by 4-5 times.

Helps reduce the cost of heating and air conditioning using energy-efficient ventilation systems with recovery. The project implies that the soils that are under the house are ordinary, namely: homogeneous, non-subsiding, not wet. Ground water is located below the foundations. The freezing depth of 1 m was taken into account. The plot is flat.

It should be borne in mind that before starting construction, geological surveys should be done. Based on their results, it will be possible to design individual foundations that will match the soil properties on your site. The project provides for monolithic reinforced concrete foundations. The external walls and the inner wall are made of M 100 brick in M ​​75 mortar. The external surface of the walls is to be faced with Neopor insulating boards of a minimum thickness of 150 mm

Partitions made of aerated concrete or brick. Ceilings - standard reinforced concrete panels produced by factories of the construction industry. Overlapping is insulated with PSB 350mm polystyrene or mineral wool. The roof is pitched. Rafters wooden,. Roofing - shingles. Perhaps the use of metal.

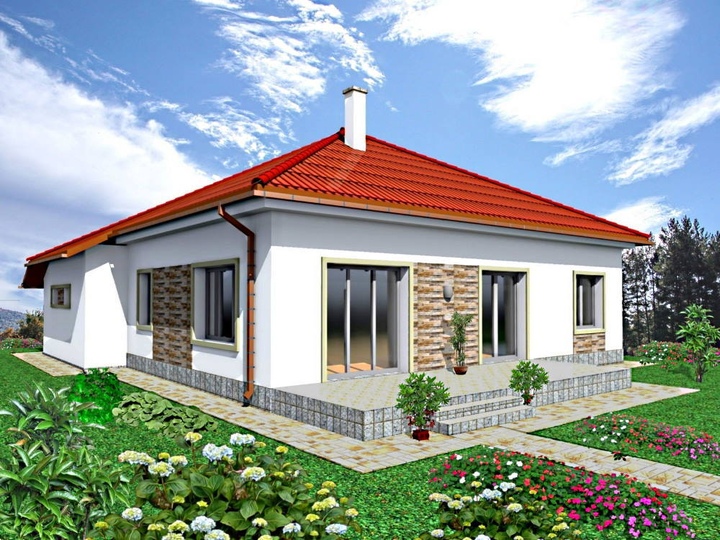

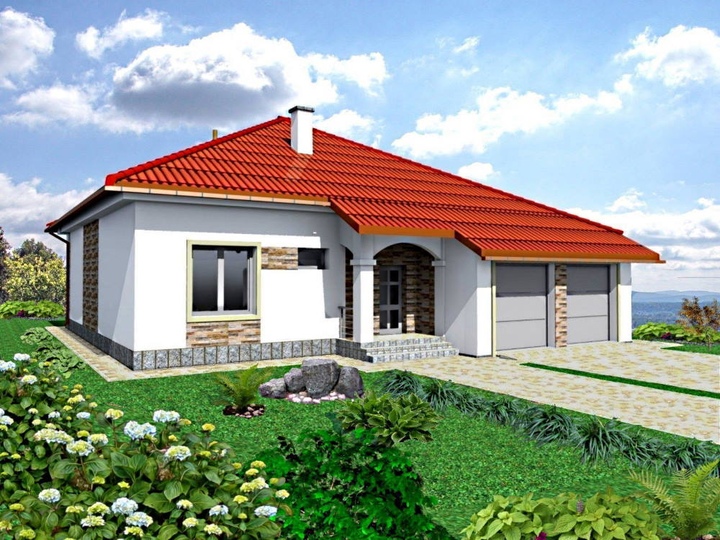

Exterior wall decoration - decorative polymer-cement plaster for exterior work on a glass mesh with painting. Facade details are provided with ceramic or natural stone tiles. The plinth is faced with large-format ceramic plates for outdoor use or slabs made of natural stone.

Based on your preferences, we can develop an individual design project for facades and interiors.

Individual projects of heating, sewage, ventilation and power supply can also be developed, which will greatly simplify the construction and reduce the number of alterations.
