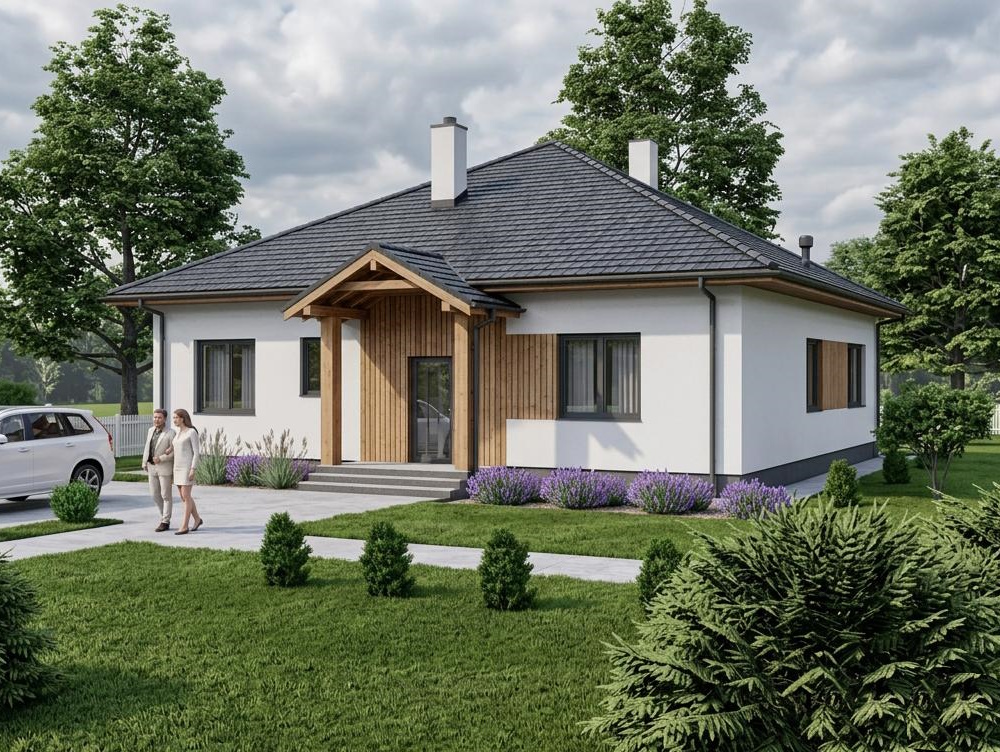

Project of a one-storey house of with four bedrooms, a fireplace and a terrace Gerda 2 (154 м²)
.jpg)
Project of a one-story house with four bedrooms:
- Total area:154 м²
- House dimensions:13.67 м х 13.56 м
CONSTRUCTION:
- Foundations:Tape monolith reinforced concrete
- Exterior Walls:Brick 380 mm + rockwool 150 mm
- Overlaps:Reinforced concrete panels
- Roof:Pitched
- Roofing:Bitumen tile
Project price:
957 €
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Parameter | data |
|---|---|
| Foundations | Tape monolith reinforced concrete |
| Walls | Brick 380 mm + rockwool 150 mm |
| Roofing | Bitumen tile |
| Number of floors | 1 |
| First floor floor | On the ground |
| Ground floor height | 3.2 м |
| Overlap of the first floor | Reinforced concrete panels |

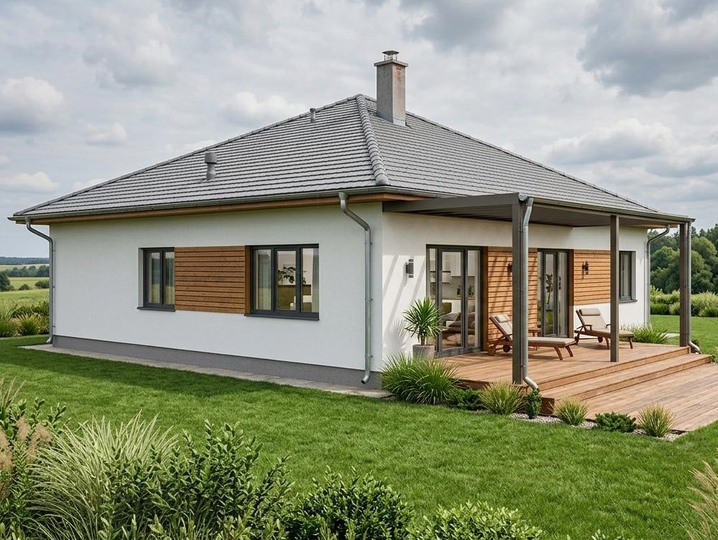

Entering the house we get into the hallway with sliding wardrobes for outerwear. To the left of the front door is a boiler room. Opposite the hallway is a toilet. To the right is the kitchen combined with the living room where the fireplace is located. Access to the terrace is projected from the living room. From the kitchen-living room you can get into the room which serves as an office or bedroom for guests.
In this project of a one-story house, there are three bedrooms, which are located on the left side. Each of the bedrooms has a separate dressing room. From the master bedroom there is an entrance to a private bathroom. The second bathroom is designed for the inhabitants of two bedrooms located nearby. This bathroom has a place for a washing machine. At the end of the corridor is a utility pantry.
The project of a one-story house provides for a strip foundation of monolithic concrete.
The project took into account that the base soil is homogeneous, not subsiding, not moist. Groundwater below the foundation. Depth of soil freezing - 1m.
Attention. Foundations must be redesigned according to the results of geological surveys at the construction site.
The external walls of the house are made of brick lined with modern effective Neopor insulation. Ceilings - reinforced concrete panels. Panel Application allowed to increase the distance between the supporting walls and reduce the length of the foundations.
Roofing shingles.
For heating, it is possible to use both a gas boiler and a solid fuel boiler or heat pump. Replacing heating boilers with a heat pump you can in the winter 4-5 times reduce heating costs, and in the summer use a heat pump to cool the air by abandoning the air conditioner. In addition, the use of a heat pump reduces the likelihood of fires. The heat pump does not use an open flame.
