Stock house plan - Vorzel (131 м²)

Stock home design of a mansard house with five living rooms House plan - Vorzel Main facade

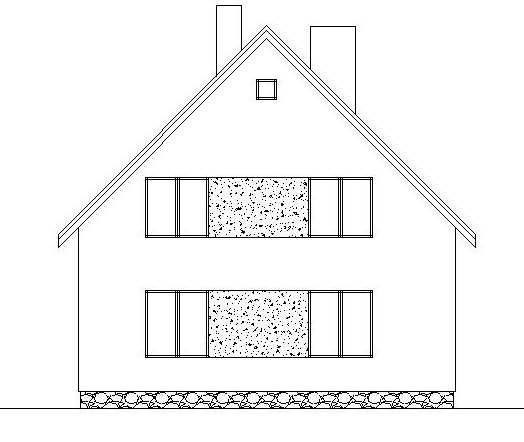

Stock home design of a mansard house with five living rooms House plan - Vorzel Rear facade

Mansard house with five living rooms:

Total area:131 м²
House dimensions:9.4 м х 9.8 м

CONSTRUCTION:

Foundations:Tape prefabricated reinforced concrete
Exterior Walls:Aerated concrete block 400 mm
Overlaps:Wooden joist
Roof:Pitched
Roofing:Bitumen tile

Project price:

478 €

composition of the project

Ground floor plan Vorzel

Ground floor plan Vorzel

The basic version with a separate kitchen

№	Name	Sq.m
1	Рortal	2.52
2	Hallway	9.24
3	Half-bathroom	4.94
4	Living room	16.74
5	Kitchen	13.94
6	Bedroom	14.6
7	Staircase	5.35
Total floor area		67,33

Version with a combined kitchen and living room, fireplace and a large bathroom

№	Name	Sq.m
1	Рortal	2.52
2	Hallway	9.24
3	Half-bathroom	7.56
4	Bedroom	16.74
5	Kitchen	8.6
6	Living room	19.3
7	Staircase	2.7
Total floor area		66,66

Attic plan Vorzel

Attic plan Vorzel

The basic variant

№	Name	Sq.m
1	Corridor	12.48
2	Bathroom	5.0
3	Bedroom	16.5
4	Bedroom	15.82
5	Bedroom	14.72
Total floor area		64,52

Version with wardrobe

№	Name	Sq.m
1	Corridor	9.6
2	Bathroom	5
3	Bedroom	16.5
4	Bedroom	15.82
5	Bedroom	14.72
6	Walk-in closet	2.88
Total floor area		64,52

Cut Vorzel

Roof plan Vorzel

Input data and construction description
Parameter	data
Soil carrying capacity	2 кг/см2
Foundations	Tape prefabricated reinforced concrete
Walls	Aerated concrete block 400 mm
Roofing	Bitumen tile
Number of floors	2
First floor floor	On the ground
Ground floor height	2.7 м
Mansard wall height	2.65 м
Overlap of the first floor	Wooden joist
