Project of an affordable house with two apartments and heating from a solid fuel boiler ''Margo 2'' (134 м²)

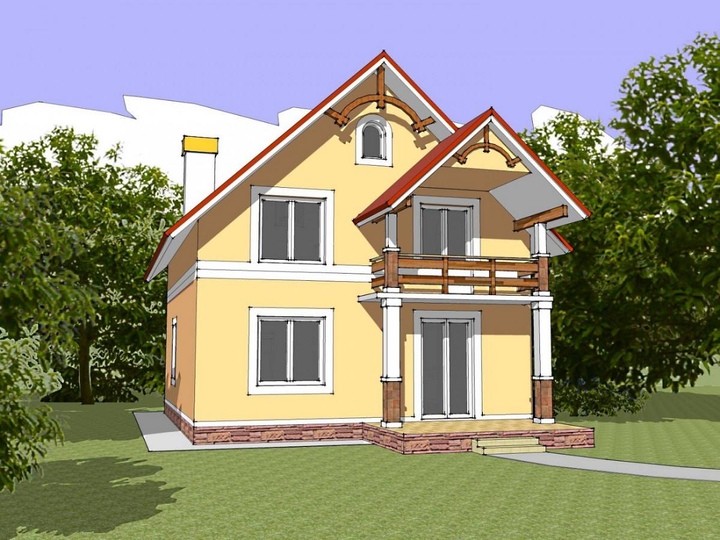

Project of an affordable house with two apartments and heating from a solid fuel boiler ''Margo 2'' Main facade

Project of an affordable house with two apartments and heating from a solid fuel boiler ''Margo 2'' Rear facade

Economical duplex apartment. On every floor the isolated apartment is with a large kitchen:

Total area:134 м²
House dimensions:8.4 м х 14.9 м

CONSTRUCTION:

Foundations:Tape monolith reinforced concrete
Exterior Walls:Aerated concrete block 375 mm
Overlaps:Wooden joist
Roof:Pitched
Roofing:Metal tiles

Project price:

478 €

composition of the project

Ground floor plan Margot 2

№	Name	Sq.m
1	Boiler room	6.1
2	Hallway	8.3
3	Half-bathroom	6.2
4	Kitchen	12.4
5	Living room	17.3
6	Bedroom	10.9
7	Рortal	3.4
8	Staircase	4.0
Total floor area		68,6

Attic plan Margot 2

Attic plan Margot 2

№	Name	Sq.m
1	Corridor	4.6
2	Living room	9.3
3	Half-bathroom	5.8
4	Kitchen	14.1
5	Bedroom	15.5
6	Walk-in closet	1.1
7	Pantry	2.4
8	Walk-in closet	1.1
9	Bedroom	11.8
Total floor area		65,7

№	Name	Sq.m
1	Corridor	4.6
2	Bedroom	9.3
3	Half-bathroom	5.8
4	Kitchen	14.1
5	Bedroom	15.1
6	Walk-in closet	1.1
7	Pantry	2.4
8	Walk-in closet	1.1
9	Bedroom	11.8
Total floor area		65,3

Cut Margot 2

Roof plan Margot 2

Input data and construction description
Parameter	data
Soil carrying capacity	1.7 кг/см2
Foundations	Tape monolith reinforced concrete
Walls	Aerated concrete block 375 mm
Roofing	Metal tiles
Number of floors	2
First floor floor	On the ground
Ground floor height	2.7 м
Mansard wall height	2.7 м
Overlap of the first floor	Wooden joist

If necessary, the material of the project walls can easily be changed to a ceramic block or brick.
